Description

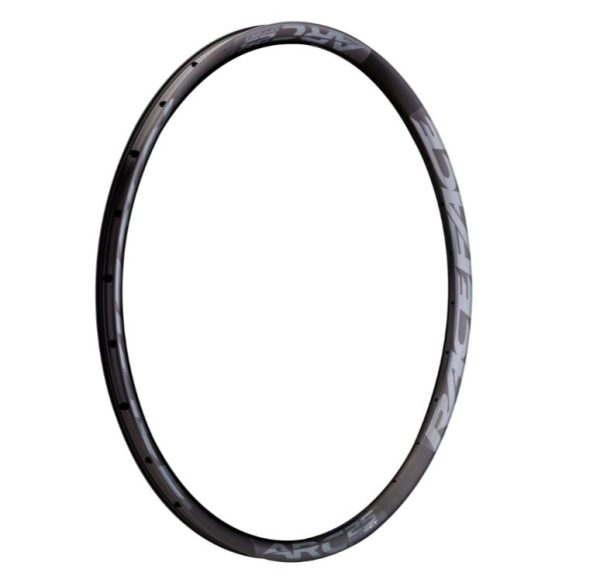

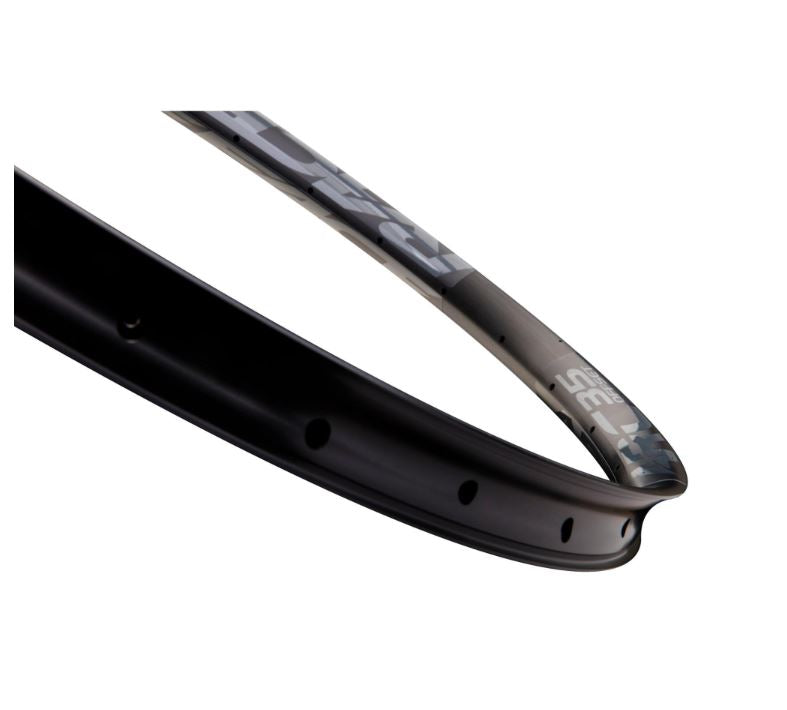

Race Face ARC Offset 25 27.5 MTB Rim – Gray



With a redesigned rim profile, the new ARC Offset rims utilize an asymmetrical design to optimize spoke tension balance, wheel durability and wheel stiffness. New 6069 Alloy provides a superior strength to weight ratio over our previous generation of ARC, significantly improving toughness. And now with our new 30mm wide Heavy Duty rim at 22mm deep, we have a rim size and width option for every tyre and every riding style. Our tubeless ready bead and offest design mean these rims are ready to hit any trail with confidence.

Features

• Tubeless ready, strong tyre retention bead.
• Sizes from 25mm to 40mm internal width.

• Specification

  		27.5		29
  Rim Weight		25mm – 418g, 30mm – 484g, 35mm – 520g, 40mm – 560g		25mm – 445g, 30mm – 525g, 35mm – 553g, 40mm – 596g
  Finish		Brushed Black Anodise Vinyl Decals		Brushed Black Anodise Vinyl Decals
  Type		Tubeless Ready Clincher (Tape and valve kit sold seperately)		Tubeless Ready Clincher (Tape and valve kit sold seperately)
  Rim Material		6069 High Strength Alloy		6069 High Strength Alloy
  Rim Depth		20mm		20mm
  Rim Offset		4.5mm		4.5mm
  Internal Rim Width		25mm, 27mm, 30mm, 35mm, 40mm		25mm, 27mm, 30mm, 35mm, 40mm
  External Rim Width		29mm, 31mm, 34mm, 39mm, 44mm		29mm, 31mm, 34mm, 39mm, 44mm
  Spoke Holes		28 or 32 Hole		28 or 32 Hole
  Rim ERD		562mm (25-40mm)		600mm (25-40mm)
  Max Spoke Tension		122KGF 1200N		122KGF 1200N

  Additional information

  Color	Black
  Option	28h, 32h
